Hexagons Proeftuin Meerhoven

Posted on ma 25 juni 2018 in designs

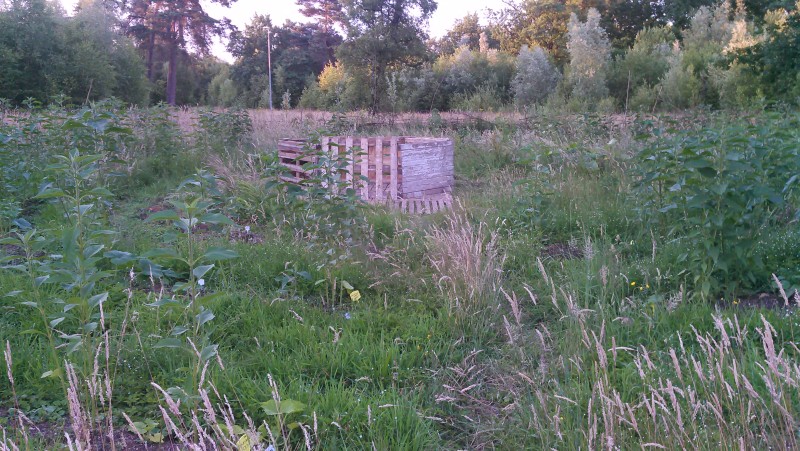

Photo of hexagon and base layer of pallets on 2018-06-18

Base for the hexagon and the first layer of pallets.

Note: this design has been abandoned.


Proeftuin Meerhoven is cooperative maintaining a community garden in Eindhoven. I am a member of the cooperative. The municipality of Eindhoven has given us about 6000 m² of public land to garden on for three years. The project started on 2017-01-24.

We use a regular shipping container to store the tools and equipment. Van Happen Containers gave us use of the container in exchange for free advertising: a banner on the side of the container. The container may need to be returned in spring 2019.

Before that time, we need another place to store the tools and have meetings or breaks. This page documents the process to create this new space.

Design strategy

I used SADIMet as my design strategy.

  • Survey
  • Analysis
  • Design
  • Implement
  • Manage / Monitor / Maintain
  • evaluate
  • tweak


Client interview

Leo Bakx provided me with a list of functions he would like to see at Proeftuin Meerhoven. We also noted the limitations at the site due to rules and regulations from the council.

  • Why
    • compost toilet
    • greenhouse
    • meeting space
    • storage
      • for tools
      • for seeds
    • water harvesting
  • Who
    • construction by
      • members
      • volunteers
    • used by
      • members
      • volunteers
      • visitors
  • Where
    • proeftuin Meerhoven
    • middle of 3 circles
  • What
    • organic shape
    • without foundation
    • modular
    • (easily) movable
    • self built
      • local materials
      • salvaged materials
      • store-bought materials (limited budget)


  • circle SE has a diameter of 4 meters.
  • circle N has a diameter of 7 meters.

Inside dimensions of the container (from Wikipedia)

  • length: 5.867 m
  • width: 2.352 m
  • height: 2.385 m

Current storage space is 13 m² in surface area and 26 m³ in volume. I guestimate that of that about 1/3 is actually used.

9 ways of observing

  • I wonder...
    • if I can mimic existing patterns
    • what materials are available
    • how much space we need
  • Observe energy
    • heat from compost
    • propane stove
    • sun from south
    • water harvesting
    • wood blocks
    • man power from volunteers
  • Observe flow
    • people - S and E
    • rain water - above
    • wild life - W and N
    • wind - SW
  • Observe communities
    • proeftuin Meerhoven
    • Meerhoven
    • Eindhoven
  • Observe patterns
    • 3 circles (like clover)
    • dome
    • keyhole
    • tunnel
      • rounded
      • pointed arch
      • triangle (tent)
      • cube
    • vertical tube
      • single
      • multiple, honeycomb style
  • Observe edge
    • at the edge of the inner circle
  • Observe limits
    • contract with council
    • max height
    • no foundation
    • litte budget
    • size middle circles
      • 4m Ø SE
      • 7m Ø N
  • Observe from stillness
    • quieter in N, NW and W
  • Observe past & future
    • limited lifespan
    • reusable
    • contract with municipality is for 3 years use


PMI on shapes

Shapes dome tunnel silo beecomb cube
Modular / versatile 1 1 1 2 1
Oranic shape 3 2 2 3 1
Simple construction 0 3 2 2 3
Fits available area 3 1 2 3 1
Wind resistant 3 2 1 2 1
Total 10 9 9 12 7

Functions and elements

Functions from Client Interview decomposed into elements

  • compost toilet
    • closable, lockable space
    • receptacles - buckets
    • seat
    • toilet paper
    • cover material
  • greenhouse
    • transparent to sun
  • meeting space
    • room for sitting
    • room for standing
  • storage for tools and seeds
    • bins
    • shelves
    • drawers
    • hooks on wall
    • hooks on ceiling
    • dry, ventilated space
  • water harvesting
    • receptacle - barrel
    • tubing
    • gutter
    • close to where water is collected
    • close to where water is needed
    • at lowest point of roof
    • as high as possible inside or outside
    • inside, water can act as thermal mass
    • automatic watering with drip irrigation
  • compost bin
    • for content of buckets
    • preferably close to toilet
    • can we use heat from compost bin for greenhouse

Planning for real

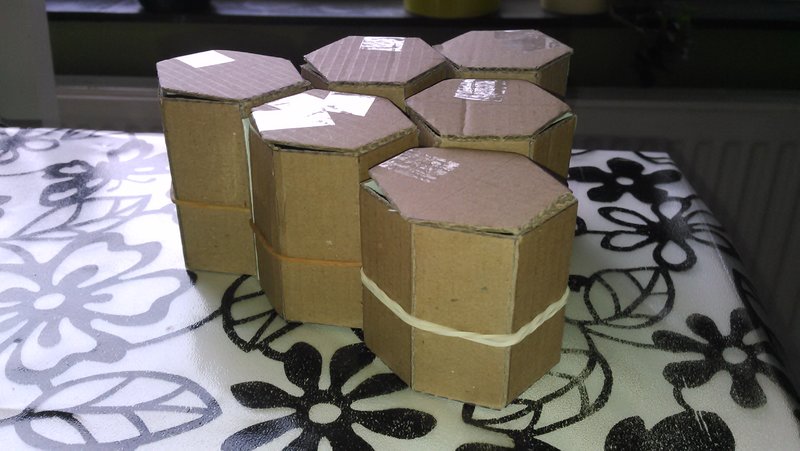

concept scale model

Showing what the structure would look like in practice. The front hexagon is slightly lower than the next two. Those two are slightly lower again as the final three.

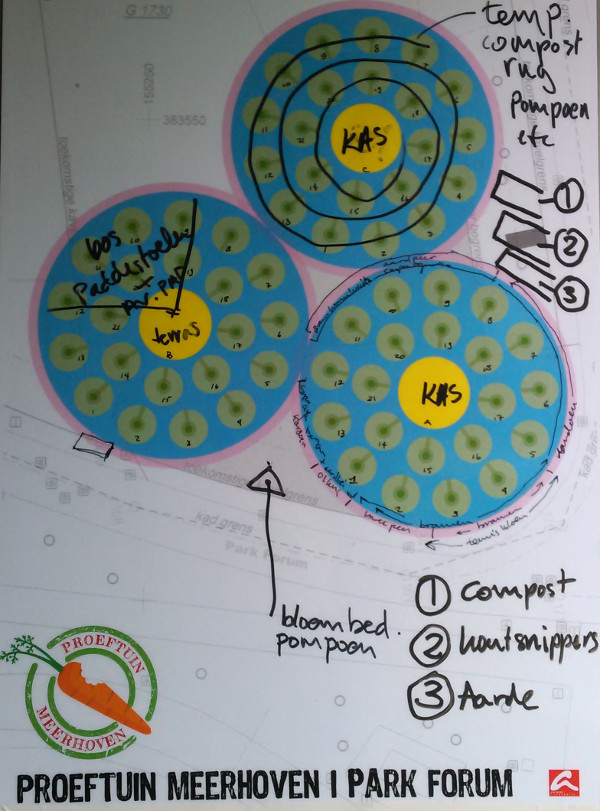

biggest circle

Top view for the biggest circle. Base layer are pallets, with pallets for the hexagon placed vertically to create walls.

Dimensions of one hexagon:

  • side length is the width of a pallet: r = 1m 20
  • surface area is 2*sqrt(3)*r²: A = 5m² (approx.)
  • 3 hexagons equal or exceed storage capacity of one shipping container

Materials needed for first hexagon:

  • 8 pallets for floor
  • 6 pallets for 80cm wall (small storage bin)
  • OR 12 pallets for 1m 60 wall (medium storage bin)
  • OR 18 pallets for 2m 40 wall (walk-in)

Materials needed for the second hexagon are slightly less. We need to construct only five vertical walls extra. One wall is shared between two hexagons.

If the hexagons have no wall in between we create a bigger internal space. One of the walls of the first hexagon can be moved. We then only need to construct four walls extra.

The requirements for the floor pallets go down by one because the area is shared between hexagons.

Number of pallets needed:

  • fase 1: 1 hexagon
    • 8 on bottom
    • 6 for walls of 80cm, 12 for 1m60, 18 for 2m40
    • total for 2m40, 1 hexagon: 24 pallets
    • ground surface: 2*80+120 x (3+1)*80 = 2m80 x 3m20
  • fase 2: 2 additional hexagons
    • 2*8 - 2 = 14 on bottom
    • 7 for walls of 80cm, 14 for 1m60, 21 for 2m40
    • total for 2m40, 2 additional hexagons: 35 pallets
    • total for 2m40, 3 hexagons: 24 + 35 = 59 pallets (= 20/hexagon)
    • ground surface: 3*80+2*120 x (6+1)*80 = 4m80 x 5m60
  • fase 3: 3 additional hexagons
    • 3*8 - 4 = 20 on bottom
    • 8 for walls of 80cm, 16 for 1m60, 24 for 2m40
    • total for 2m40, 3 additional hexagons: 44 pallets
    • total for 2m40, 6 hexagons: 59 + 44 = 99 pallets (= 17/hexagon)
    • ground surface: 4*80+3*120 x (8+1)*80 = 6m80 x 7m20


We started on the construction on 2018-06-17 (Sunday). There were few different types of pallets available. Some were europallets, some pallets were thinner but had smaller gaps between the upper boards. We used the thinner pallets for the floor and latched five vertical europallets to each other to create a preliminary structure.

The base of the first structure on 2018-06-18

Base for the first hexagon and the first layer of pallets.

On 2018-07-27 (Friday) Inge Kouw put out a press release stating we are looking to give a workshop building with pallets. It also contained a call for pallets.

On 2018-07-29 (Sunday) a journalist of the Eindhoven Dagblad, Karin Rosendaal, came by to do an interview with a few volunteers about our plans.

On 2018-07-30 (Monday) the article appeared in the printed edition of the newspaper as well as on-line.

On 2018-08-01 (Wednesday), a city official let us know the planned structure was in violation of the contract with the municipality. The city asked us to stop collecting pallets and to remove all already collected pallets from the grounds.


We abandoned this design. All pallets have been removed.


4 questions

What went well?

I liked the design. It is simple, can be constructed from standardized pallets and provides ample space for fill the needs of the project.

Inge got calls and mails from many interested people that wanted to help. How could we harness this in the future?

What would I do differently?

A crucial missing piece of information was the actual agreement with the city. I relied too much on second hand information. This is something to keep in mind for future projects.

What is my vision?

The needs for this project has not changed. We still need to come up with a solution.

What is my next step?

Reassess the need for a structure and see if we can keep the container. If that is not possible, consider a more low key approach.
