Compost bin in Arno's backyard (2018)

Posted on wo 23 mei 2018 in designs

This is a design for the compost bin in Arno's backyard.

2018-05-08

Background

Designer: Arno Peters.

Design strategy

I used CEAP in designing this.

Collect site information

See site information for all collected information on the backyard.

The Humanure Handbook from Joseph Jenkins provides great insight into composting.

I watched several videos on YouTube about composting. Like Everything You Know About Composting is Wrong by Mike McGrath at TEDxPhoenixville. He makes the case that leaf compost is the best compost. You don't need to add anything else to it. However, leafs need to be broken up to start the process. Otherwise leafs stick together to make a mat. The mat is a way for a tree to suffocate competition from seedlings around its base.

Evaluate the information

Some of the design considerations:

  • habitat for micro-organisms
    • sufficient volume to start thermophilic reaction
    • sufficient moisture to prevent overheating
    • sufficient oxygen to keep aerobic micro-organisms alive
    • somewhat correct ratio of carbon (C) and nitrogen (N)
    • shaded from the sun
  • reduce necessary work
    • easy access
    • close to where the compost will be used
    • no turning
  • source of materials
    • vegetable cuttings from the kitchen
    • plants and leafy cuttings removed from garden
    • grass clippings from nearby park
    • leafs from Quercus rubra (northern red oak / Amerikaanse eik) in autumn
    • leafs from Betula pendula (silver birch / ruwe berk) in autumn

Given all the already existing structures in the garden, the logical place for the compost bin is under the tree.

Apply Permaculture Principles

Holmgren principles

  • Observe and Interact
    • nutrients and energy would leave the system via waste collection
    • nutrients and energy would leave the system via sewer
    • aim to close loops
  • Catch and Store Energy
    • plants contain chemical energy that would leave the system via waste collection
    • heat generation from thermophilic activity may help microclimate
  • Obtain a Yield
    • when in operation, we can produce about 700 liter of compost per year
    • the compost pile provides habitat and food for microbes, micro-organisms, worms, insects. Birds and small mammals can feed on the pile as well.
  • Apply Self-regulation and Accept Feedback
    • we start small using only garden and kitchen materials to compost
    • this is an experiment: we have limited experience making compost
    • micro-organisms need oxygen. One way is to turn the pile. Turning compost is a lot of work. Better to layer the pile with coarser material that have lots of air pockets
  • Use and Value Renewable Resources and Services
    • we welcome all life to the compost pile
  • Produce No Waste
    • using a compost bin closes a nutrient and energy cycle
    • diverts a "waste stream" into an asset
  • Design from Patterns to Details
    • place bin close to where the source materials comes from
    • place bin close to where the compost will be used
  • Integrate Rather than Segregate
    • the compost bin is part of the garden
    • try growing some plants on top of the pile
    • try growing some plants along the side of the pallets
  • Use Small and Slow Solutions
    • a bin made of 4 pallets
    • carry material in on foot or by bike
  • Use and Value Diversity
    • the contents of the compost pile attracts different insects and birds
  • Use Edges and Value the Marginal
    • use pallets as scaffolding for climbing plants
  • Creatively Use and Respond to Change
    • as the compost pile slowly compacted over time, I need to add more material on top to keep the bin full

Plan for action

Implement

We sourced 4 pallets from nearby locations. We set them upright on the long side. The figure below shows how.

Layout compost bin

There was no need to secure the pallets. The geometry provides enough stability.

We filled the bottom of the bin with branches. This is to provide a way to get oxygen into the lower part of the pile.

I used the tub in my bike trailer to collect material. The tub can hold about 90 liters of material. I collected several tubfulls of leafs from the nearby streets. Occasionally I also took a tub of grass clippings from piles on the side of the street. There, city workers had mowed the grass in the nearby park and put the piles out for later collection.

The inside size of the bin is 1m10 x 1m10 x 0m80. When full, the bin contains a volume of about 1000 liters. Filling the bin to the rim took a few trips. After that, almost every other week, the pile had sunk enough to put in another two tubs of material. Unfortunately I have not kept a record of what went into the pile. I do remember trying to alternate layers a bit. So after a few tubs of leafs, I added a tub of grass clippings or some other green material I found.

Compost bin constructed in July 2017

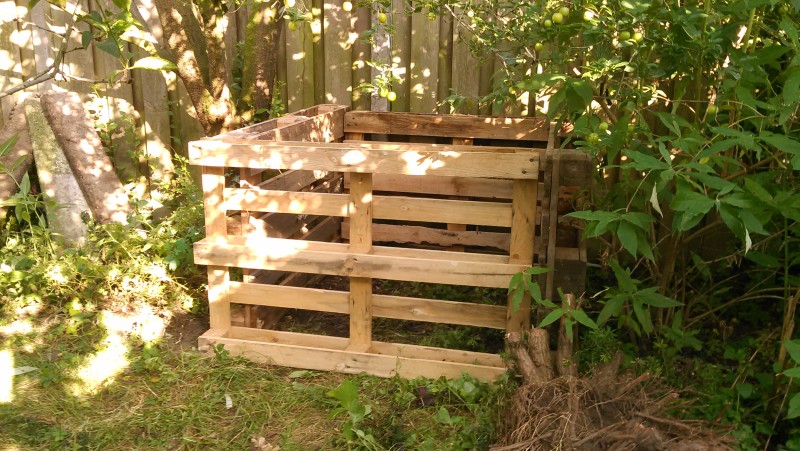

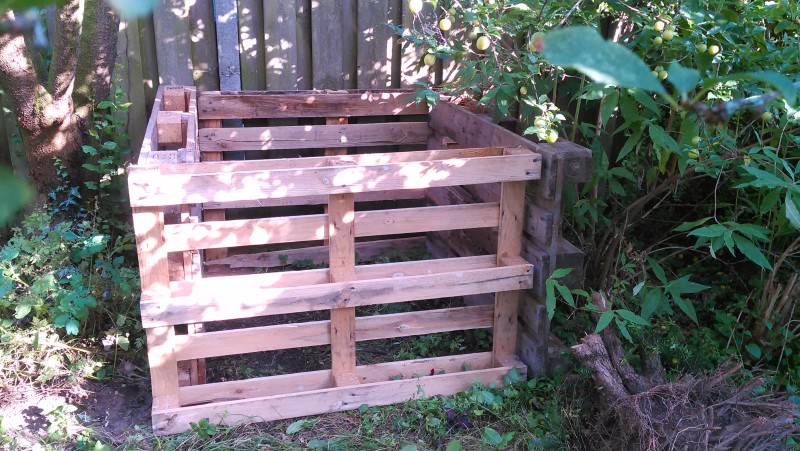

2017-07-03, empty closed bin from left 2017-07-03, empty closed bin from right

Filled up with mostly leafs in October 2017

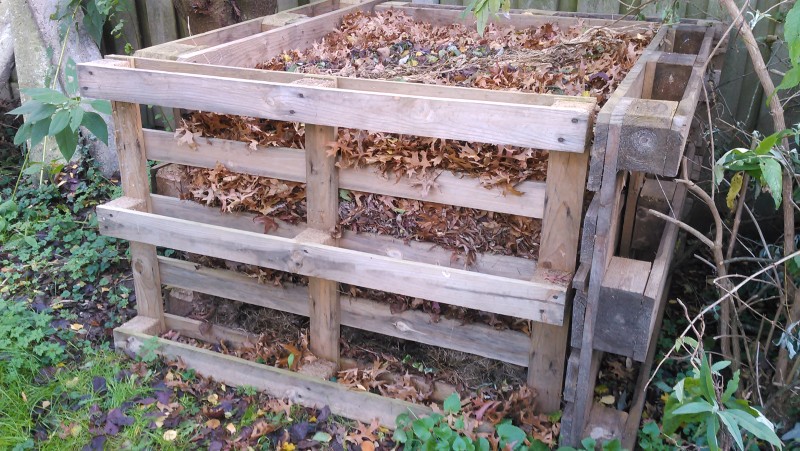

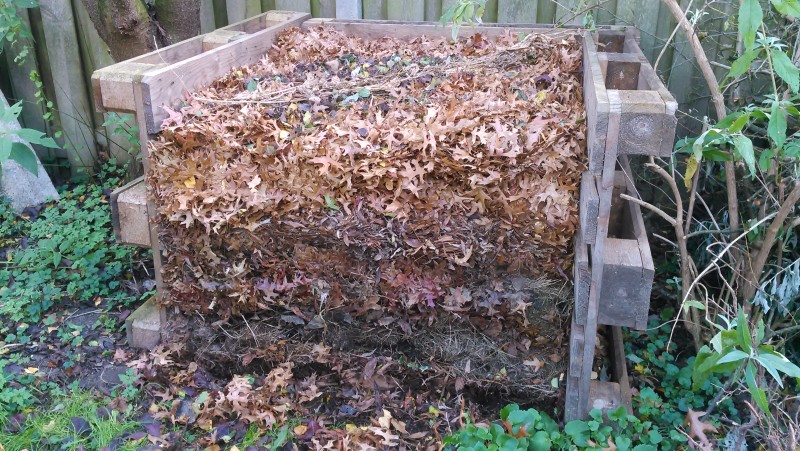

2017-10-21, filled bin closed 2017-10-21, filled bin open

Note the coloration of the leafs going from brown at the top (most recently added) to black at the bottom (longest in the bin).

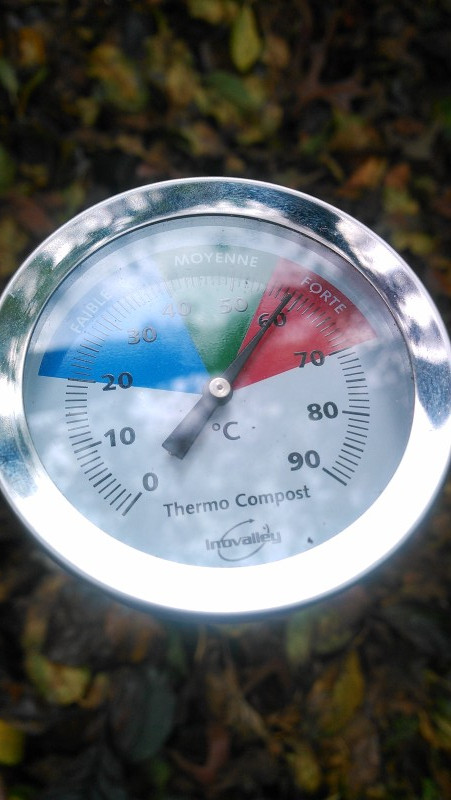

2017-10-04, thermometer in compost shows 60°C

In October, the thermometer shows the thermophilic reactions going on in the compost pile.

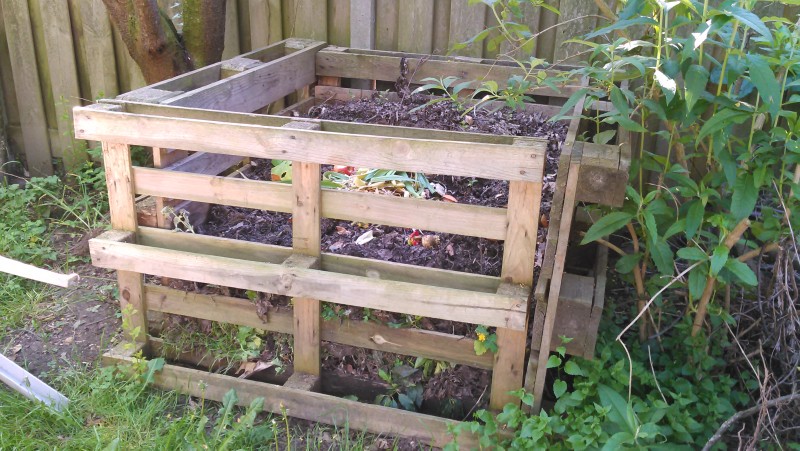

2018-05-08, bin closed 2018-05-08, bin open

The green leafs in the second picture at the bottom of the compost pile were a recent addition. On top you can see recent additions of kitchen cuttings. The contents of the bin looks a lot like compost. We also saw a few tomato plants growing on top of the mound. We planted a pumpkin to see if that would work as well.

Note also the level of material in the compost bin. The bin here is filled to about 70% of capacity. We have taken almost no material out since starting the bin! The settling of the material seems to have stopped. So we have about 700 liters of compost available for use in the garden.

Maintain

I expect the pallets will be subjected to rot. They will probably need to be replaced in a few years.

As we keep adding kitchen cuttings to the heap, I try to cover the new material with stuff that is already in the pile. In effect this is turning the pile on a very limited scale.

Evaluate

The Humanure handbook explicitly states no turning is necessary. Out of curiosity, I have turned the compost pile a few times to see how the composting process is progressing. I found turning is a lot of work.

When the pile was young, I found some places in the pile where leafs were clumped together and were not even beginning to compost. After a few months, most things were decomposing. You could still identify some elements while others had already turned to compost.

The compost bin smelled neutral, so there was little anaerobic activity.

The only extra animal activity we saw were birds rummaging through the pile, searching for food scraps and insects. We could discourage this by covering the pile a bit better after adding to it. Since we like birds visiting our garden, we leave it as is for now.

So far the results have exceeded the expectations.
